• 50009180 - Connecting Rod KOLBENSCHMIDT
   |    Brand: KOLBENSCHMIDT   |    Code: 50009180   |    Title: Connecting Rod

Connecting Rod - 50009180 KOLBENSCHMIDT - 06J198401H

Car: ŠKODA-VW
Connecting Rod - 50009180 KOLBENSCHMIDT - 06J198401H
Weight  : 0,57 kg
Length [mm]: 148 mm
Bore Diameter [mm]: 50,6 mm
Bolt Head Diameter [mm]: 23 mm
Connecting Rod Design: Trapezoidal Connecting Rod
We recommend!
Netto price $124.19 ($124.19 without VAT 0%)
Your price -40% $74.51 ($74.51 without VAT 0%)
Warehouse: 0 pcs
Supplier: 0 pcs

EAN: 4028977873874

The pistons for the 1.8 TFSI and TSI engines were modified in the series. The new pistons are equipped with optimized, three-piece oil control rings and a DLC pin. Because the piston pin diameter was also changed from 21 mm to 23 mm during the modification, the connecting rod must also be replaced with replacing the pistons.Motorservice is now offering suitable pistons and connecting rods for the aftermarket. The connecting rods are offered as a motor kit (4 piece), as their weights are precisely coordinated.

Attention:

To prevent imbalances due to different weights of the components, Motorservice recommends always replacing the pistons and connecting rods of an engine completely.



Articles

Categories

Crankshafts > Connecting rod

Used in

  • AUDI
    • AUDI BWA
      147 kW / 200 HP 1984 ccm 4 cylinders 16 valves Petrol
    • AUDI BZB
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CABD
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CBFA
      147 kW / 200 HP 1984 ccm 4 cylinders 16 valves Petrol
    • AUDI CCZA
      147 kW / 200 HP 1984 ccm 4 cylinders 16 valves Petrol
    • AUDI CDAA
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CDHA
      88 kW / 120 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CDHB
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CJEB
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CJED
      106 kW / 144 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CJEE
      130 kW / 177 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CJSA
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CJSB
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CNSB
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI CYGA
      140 kW / 190 HP 1798 ccm 4 cylinders 16 valves Petrol
    • AUDI DAJB
      141 kW / 192 HP 1798 ccm 4 cylinders 16 valves Petrol
  • SEAT
    • SEAT CCZA
      147 kW / 200 HP 1984 ccm 4 cylinders 16 valves Petrol
    • SEAT CDAA
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SEAT CDHA
      88 kW / 120 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SEAT CDHB
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SEAT CJSA
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SEAT CJSB
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SEAT DAJA
      141 kW / 192 HP 1798 ccm 4 cylinders 16 valves Petrol
  • SKODA
    • SKODA CDAA
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SKODA CDAB
      112 kW / 152 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SKODA CJSA
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SKODA CJSB
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • SKODA CJSC
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
  • VW
    • VW BZB
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CDAA
      118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CDAB
      112 kW / 152 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CJSA
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CJSB
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CJSC
      132 kW / 180 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CNSA
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CNSB
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CPKA
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW CPRA
      125 kW / 170 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW DAJA
      141 kW / 192 HP 1798 ccm 4 cylinders 16 valves Petrol
    • VW DAJB
      141 kW / 192 HP 1798 ccm 4 cylinders 16 valves Petrol

Reference Numbers

Is a part of

PM009000KS - ET ENGINETEAM Piston Set + conrods

We recommend!
PM009000KS, Piston Set + conrods, ET ENGINETEAM, 41197600S + 50009180, 06H107065DL, 06J198401H, 06H107065BS, 06H107065BF, 06H107065DF, 06H107065CP

General information

Code:PM009000KS
Brand: ET ENGINETEAM
Title:Piston Set + conrods
Car:41197600S + 50009180
Weight  :5,30 kg

Criteria

Cylinder Bore [mm]: 82,51 mm
Bolt Length [mm]: 51 mm
Compression Height [mm]: 29,8 mm
Recess Depth 1 [mm]: 4,75 mm
For OE number: 06H107065DL
Supplementary Article/Supplementary Info: with piston rings
Bolt Head Diameter [mm]: 23 mm
Component Number: 50009180
Component Number: 41197600
General Information: Includes components from Kolbenschmidt + Elring
Show all Show less
Netto price: $1,454.38 ($1,454.38 without VAT 0%)
Your price: -40% $872.63 ($872.63 without VAT 0%)
Warehouse: 0 pcs

PM009050KS - ET ENGINETEAM Piston Set + conrods

We recommend!
PM009050KS, Piston Set + conrods, ET ENGINETEAM, 41197620S + 50009180

General information

Code:PM009050KS
Brand: ET ENGINETEAM
Title:Piston Set + conrods
Car:41197620S + 50009180
Weight  :5,30 kg

Criteria

Cylinder Bore [mm]: 83,01 mm
Bolt Length [mm]: 51 mm
Compression Height [mm]: 29,8 mm
Recess Depth 1 [mm]: 4,75 mm
Supplementary Article/Supplementary Info: with piston rings
Oversize [mm]: 0,5 mm
Component Number: 4x 41197620
Component Number: 4x 50009180
General Information: Includes components from Kolbenschmidt + Elring
Show all Show less
Netto price: $1,454.38 ($1,454.38 without VAT 0%)
Your price: -40% $872.63 ($872.63 without VAT 0%)
Warehouse: 0 pcs

Alternatives

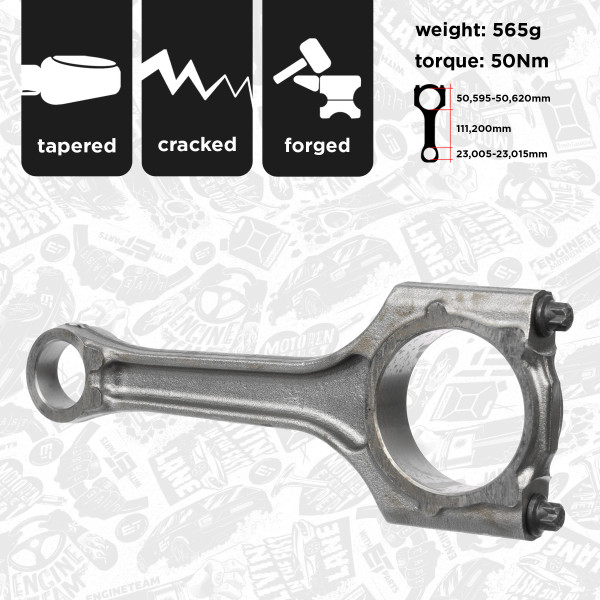

OM0037 - ET ENGINETEAM Connecting Rod

We recommend!
OM0037, Connecting Rod, ET ENGINETEAM, Audi Seat Skoda VW A3 Sportback TT Roadster Altea XL Octavia II Superb II Yeti Golf 1,8 TSI CDAA CDHB 2010+, 06J198401H, 50009180, CO005400

General information

Code:OM0037
Brand: ET ENGINETEAM
Title:Connecting Rod
Car:Audi Seat Skoda VW A3 Sportback TT Roadster Altea XL Octavia II Superb II Yeti Golf 1,8 TSI CDAA CDHB 2010+
Weight  :0,64 kg

Criteria

Hole Spacing [mm]: 111,2 mm
Tightening Torque [Nm]: 50 Nm
Machining: Forged
Machining: cracked
Connecting Rod Design: Trapezoidal Connecting Rod
Netto price: $133.33 ($133.33 without VAT 0%)
Your price: -40% $80.00 ($80.00 without VAT 0%)
Warehouse: 0 pcs
Warehouse 2 (+3 days): > 25 pcs

CO005400 - IPSA Connecting Rod

CO005400, Connecting Rod, IPSA, 06J198401H, 50009180, BMY1007, GNX4891, OM0037, WG1889104

General information

Code:CO005400
Brand: IPSA
Title:Connecting Rod
Car:ŠKODA-VW
Weight  :0,00 kg

Criteria

Support plate diameter [mm]: 23 mm
Hole Spacing [mm]: 148,0 mm
Tightening Torque [Nm]: 50 Nm
Machining: Forged
Weight [g]: 570 g
Machining: cracked
Connecting Rod Design: Trapezoidal Connecting Rod
Bolt Head Diameter [mm]: 8 mm
Show all Show less
Netto price: $132.24 ($132.24 without VAT 0%)
Your price: -30% $92.57 ($92.57 without VAT 0%)
Warehouse: 0 pcs
